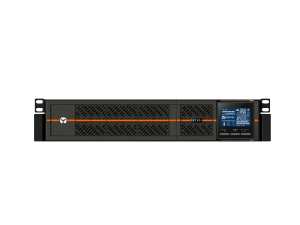

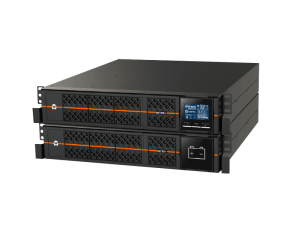

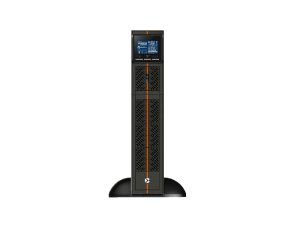

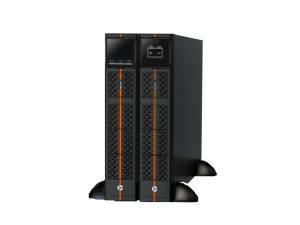

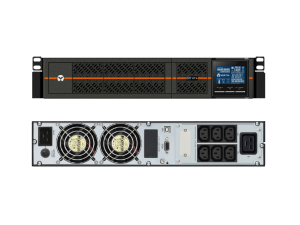

Liebert GXT RT+ 1kVA - 3kVA
Vertiv™ Liebert® GXT RT+ UPS เป็น UPS แบบ Online Double Conversion ซึ่งให้ประสิทธิภาพในการป้องกันพลังงานสูงสุดถึง 93% ที่ full load (high 0.9 power factor, ประสิทธิภาพสูงในโหมด ECO) ในราคาย่อมเยา ระบบที่มีประสิทธิภาพพร้อมการปรับใช้และ ความคล่องตัวในการทำงาน Liebert® GXT RT+ UPS มาพร้อมกับรุ่นต่างๆ ตั้งแต่ 1kVA ถึง 3kVA ในรูปแบบ Tower และแบบ Rack mount ซึ่งทำให้ UPS รุ่นนี้สมบูรณ์แบบสำหรับการติดตั้งที่ส่วนขอบของเครือข่ายหรือในพื้นที่ที่มีจำกัด





MODEL SPECIFICATIONS OVERVIEW
Model | Power Rating | Input Voltage range | Output Voltage | Depth | Width | Height | Weight |
---|---|---|---|---|---|---|---|
GXTRT-1000IRT2UXL | 1000VA / 900W | 120 - 300 VAC | 220/230/240 VAC | 310 mm | 438 mm | 86 mm | 11 kgs |
GXTRT-1500IRT2UXL | 1500VA /1350W | 120 - 300 VAC | 220/230/240 VAC | 410 mm | 438 mm | 86 mm | 15.9 kgs |
GXTRT-2000IRT2UXL | 2000VA / 1800W | 120 - 300 VAC | 220/230/240 VAC | 410 mm | 438 mm | 86 mm | 18.2 kgs |
GXTRT-3000IRT2UXL | 3000VA / 2700W | 120 - 300 VAC | 220/230/240 VAC | 632 mm | 438 mm | 86 mm | 26.6 kgs |
Benefits
Compact, flexible form factor
- Option of rack or tower mounting supports simplified UPS selection and deployment.
External battery cabinet capability
- Connected modules enable scalable runtime during failure of main utility power.
User-friendly interface
- Intuitive LCD provides complete UPS status and configuration information at a glance.
Monitoring compatibility
- Network interface or serial connections enable remote access to UPS for power consumption
monitoring and configuration of alert notification parameters.
- Network interface or serial connections enable remote access to UPS for power consumption
High power factor (0.9)
- More usable power renables more connected loads for space and cost savings.
Features
- Online technology with two stages of power conversion
- Output power factor higher than majority of comparable competitor models
- Flexible rack/tower form factor
- External battery cabinet compatibility
- User-friendly liquid crystal display (LCD)
- High efficiency ECO mode
- Smart battery charger design
- Wide input voltage operation (120-300V AC)
Liebert GXT RT+ 1kVA – 3kVA
Datasheet
