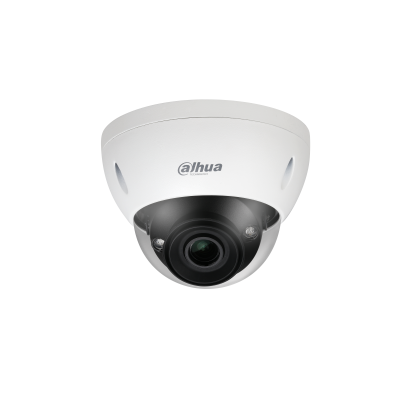

IPC-HDBW5541E-ZE
5MP IR Vari-focal Dome WizMind Network Camera
> 5-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5MP (2592 × 1944)@20 fps , and supports 4MP (2688 × 1520)@25/30 fps
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Three switchable intelligent resources: IVS, face detection, and people counting.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card.
> 24 VAC/12 VDC/PoE power supply, easy for installation.
> ePoE; IP67 and IK10 protection.
> SMD 3.0.
Camera :
> Image Sensor : 1/2.7″ CMOS
> Max. Resolution : 2592 (H) × 1944 (V)
> ROM : 128 MB
> RAM : 1 GB
> Scanning System : Progressive
> Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
> Min. Illumination :
0.005 lux@F1.5 (Color, 30 IRE)
0.0005 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)
> S/N Ratio : >56 dB
> Illumination Distance : 40 m (131.23 ft) (IR)
> Illuminator On/Off Control : Auto
> Illuminator Number : 3 (IR LED)
> Pan/Tilt/Rotation Range :
Pan: 0°–355°
Tilt: 0°–65°
Rotation: 0°–355°
Lens :
> Lens Type : Motorized vari-focal
> Lens Mount : φ14
> Focal Length : 2.7 mm–13.5 mm
> Max. Aperture : F1.5
> Field of View :
Horizontal: 100°–28°
Vertical: 72°–21°
Diagonal: 133°–35°
> Iris Control : Auto
> Close Focus Distance : 0.8 m (2.62 ft)
IPC-HDBW5541E-ZE
>>Datasheet
