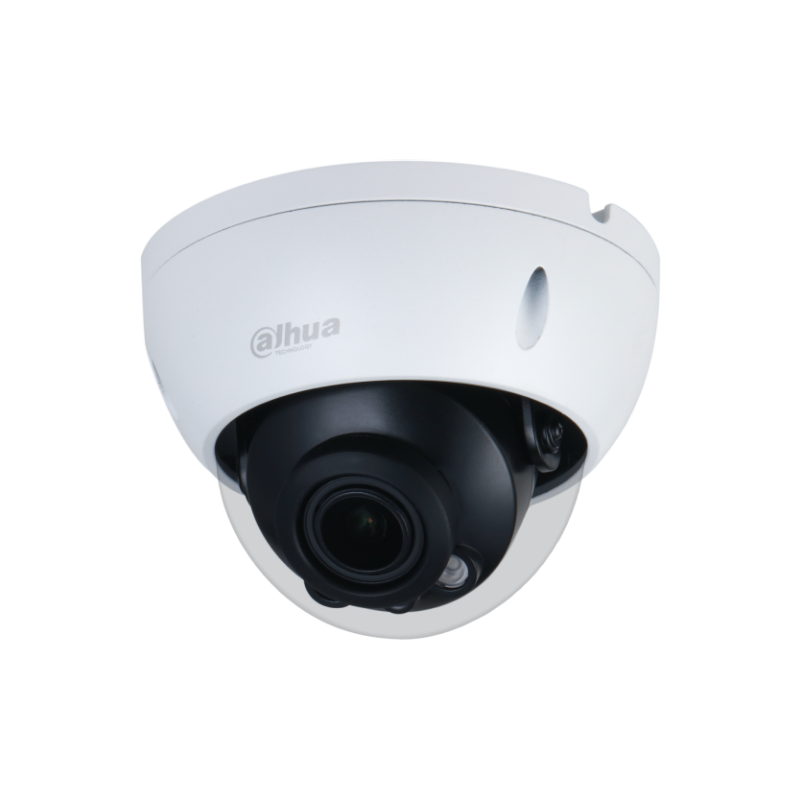

IPC-HDBW3841R-ZAS
2MP WDR IR Dome Network Camera
> 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
> Outputs 2MP (1920 × 1080)@25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in IR LED, max IR distance: 40 m
> ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
> Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire
> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
> Alarm: In, out; audio: In, out; max. 256 GB Micro SD card
> 12V DC/POE power support
> IP67, IK10 protection grade
Camera :
> Image Sensor : 1/2.8” 2Megapixel progressive CMOS
> Max. Resolution : 1920 (H) × 1080 (V)
> ROM : 128MB
> RAM : 128MB
> Scanning System : Progressive
> Electronic Shutter Speed : Auto/Manual 1/3 s – 1/100000 s
> Min. Illumination : Color : 0.002Lux@ F1.5 Black&White :
0.001Lux@ F1.5, 0Lux@ F1.5 (IR on)
> S/N Ratio : > 56 dB
> Illumination Distance : 40 m (131.23 ft)
> Illuminator On/Off Control : Auto/Manual
> Illuminator Number : 2 (IR LED)
> Pan/Tilt/Rotation Range : Pan : 0°–355°
Tilt : 0°–75° Rotation : 0°–355°
Lens :
> Lens Type : Motorized vari-focal
> Mount Type : φ14
> Focal Length : 2.7mm–13.5mm
> Max. Aperture : F1.5
> Field of View : Horizontal : 109°–28°
Vertical : 57°–16° Diagonal : 131°–33°
> Iris Type : Fixed
> Close Focus Distance : 0.8 m – 0.8 m (2.62ft – 2.62ft)
IPC-HDBW3841R-ZAS
>>Datasheet
