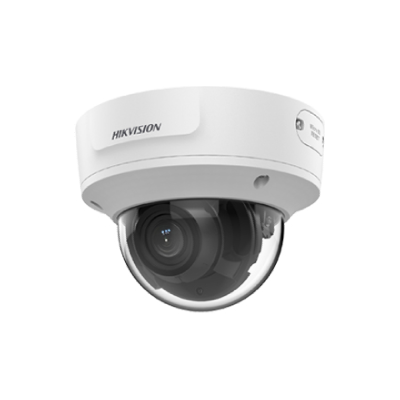

DS-2CD3756G2T-IZS
AcuSense 5 MP Varifocal Dome Network Camera
> High quality imaging with 5 MP resolution
> Excellent low-light performance with powered-by-DarkFighter technology
> Clear imaging against strong back light due to 120 dB true WDR technology
> Efficient H.265+ compression technology
> Focus on human and vehicle targets classification based on deep learning
> Water and dust resistant (IP67) and vandal-resistant (IK10)
> 3D DNR technology delivers clean and sharp images
> Motorized varifocal lens for easy installation and monitoring
Camera :
> Image Sensor : 1/2.7″ Progressive Scan CMOS
> Min. Illumination : Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
> Shutter Speed : 1/3 s to 1/100,000 s
> Slow Shutter : Yes
> P/N : P/N
> Wide Dynamic Range : 120 dB
> Day & Night : IR cut filter
> Power-off Memory : Yes
> Angle Adjustment : Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens :
> Lens Type : Varifocal lens, motor-driven lens, 2.7 to 13.5 mm and 7 to 35 mm optional
> Iris Type : Auto-iris
> Lens Mount : 2.7 to 13.5 mm: Ø14 and 7 to 35 mm: Integrated
> Focal Length & FOV :
2.7 to 13.5 mm: horizontal FOV 103° to 32°, vertical FOV 73° to 24°,diagonal FOV 142° to 40°
7 to 35 mm: horizontal FOV 28° to 10°, vertical FOV 21° to 8°, diagonal FOV 35° to 13°
> Aperture : 2.7 to 13.5 mm: F1.4 and 7 to 35 mm: F1.6
DORI :
> DORI :
2.7 to 13.5 mm: D: 64 to 187 m, O: 25 to 74 m, R: 12 to 37 m, I: 6 to 18 m
7 to 35 mm: D: 200 to 580 m, O: 79 to 230 m, R: 40 to 116 m, I: 20 to 58 m
Illuminator :
> Supplement Light Type : IR
> IR Range : 2.7 to 13.5 mm: up to 40 m and 7 to 35 mm: up to 50 m
> IR Wavelength : 850 nm
> Smart Supplement Light : Yes
DS-2CD3756G2T-IZS
>>Datasheet
