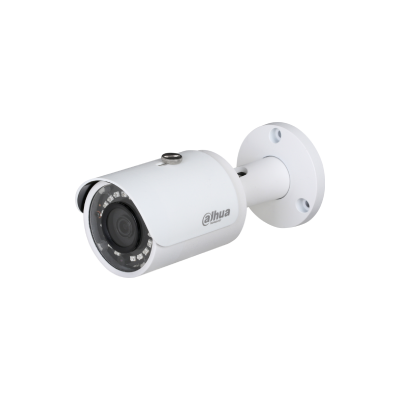

DH-SF125-S2
2MP IR Mini-Bullet Network Camera
> 1/2.7” 2Megapixel progressive CMOS
> H.265& H.264 dual-stream encoding
> 25/30fps@1080P(1920×1080)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6mm optional)
> Max IR LEDs Length 30m
> IP67, PoE
Camera :
> Image Sensor : 1/2.7” 2Megapixel progressive CMOS
> Effective Pixels : 1920 (H) x 1080 (V)
> RAM/ROM : 256MB/32MB
> Scanning System : Progressive
> Electronic Shutter Speed : Auto/Manual, 1/3~1/100000s
> Minimum Illumination :
0.08 Lux/F2.0 (Color)
0.04 Lux/F2.0 (Black&White)
0 Lux/F2.0 (Black&White, IR on)
> S/N Ratio : More than 50dB
> IR Distance : Distance up to 30m (98ft)
> IR On/Off Control : Auto/ Manual
> IR LEDs : 18
Lens :
> Lens Type : Fixed
> Mount Type : Board-in
> Focal Length : 2.8 mm (3.6 mm optional)
> Max. Aperture : F2.0/F2.0
> Angle of View : H:104°/92°, V:55°/50°
> Focus Control : Fixed
> Close Focus Distance : 0.6m (0.9m)
DH-SF125-S2
>>Datasheet
